Street Lights

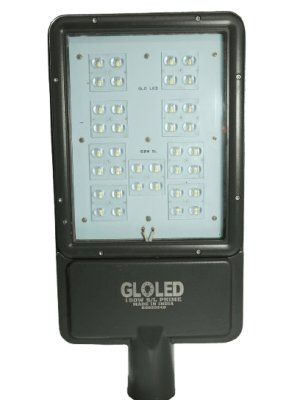

Prime Street Light

Premium lighting

220 Lumen/Watt

Highest Distance coverage

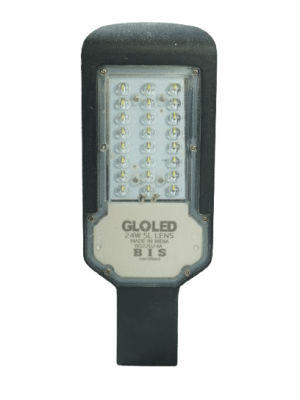

Lens Street Light

140 Lumen/Watt

More height coverage

Rocket Street Light

220 Lumen/Watt

Aesthetic look

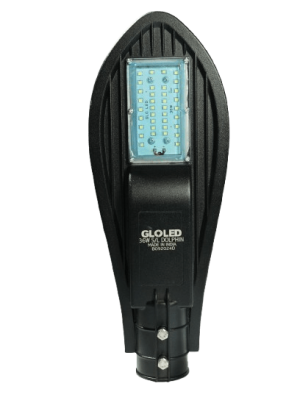

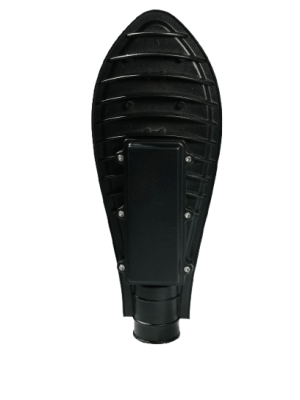

Dolphin Street Light

Decorative look

High heat sink

Eco Street Light

Commercial use

140 Lumen/Watt

Toughened glass cover

LED street light is an integrated light-emitting diode (LED) light fixture used for street lighting.
The LED light cluster is sealed on a panel and then assembled to the LED panel with a heat sink to become an integrated lighting fixture.
Varied designs have been created that incorporate types of LEDs into a light fixture

High-power LEDs & low-power LEDs.

Advantages of LED street lights


  • Minimum energy usage: Many LED lighting retrofits have been known to reduce energy consumption
  • Anticipated and Long lifetime: LED street lights usually have 10 to 15 years of life i.e. two to four times the life of HPS.
    ( Lifetimes are typically set by a decrease in luminous output of 30%. But the functional lifetime of an LED fixture is limited by the weakest link; associated drive electronics are typically projected to stay up to 50,000 hrs. It is hence understood that the LED streetlight variant hasn’t been in service long enough to confirm the projections). If this is clear then, in practice, less recurrent need for service or replacing the LEDs shall reduce its cost of maintenance.
  • Precise color rendering: The color rendering index is the ability of a light source to exactly reproduce the colors of the objects when compared to an ideal light source. Improved color rendering makes it easier to recognize objects.
  • Quick turn on and off: LEDs come on with full brightness instantly when switched on. Instead of the fluorescent and high-intensity discharge (HID) lamps, such as mercury vapor, sodium vapor lamps, etc. which take time to heat up on being switched on.
  • Immediate restart: LEDs do not pose a problem restarting immediately (hot ignition) following a brief power failure or inadvertent turn-off, unlike other lamps.
  • RoHS compliance: Even if LEDs get damaged they don’t release poisonous gases as they don’t contain mercury or lead.
  • Nocturnal insects are less attracted: Many nocturnal insects are attracted to ultraviolet light emitted by a lot of conventional light sources.
  • Optically efficient lighting equipment: LED lamp assemblies (panels) can send light in the desired directions without a reflector.
    While street lights i.e. fluorescent lamps and other lamps with phosphor-coated bulbs where the bulb itself absorbs some of the light. This is directed back down by the reflector. The reflector also captures the light emitted upwards from the lamp.
    The reflector absorbs some of the light. Then a glass cover, called a refractor, helps project the light down on the street in the required way but some light is wasted up towards the sky (light pollution).
  • Hence LEDs are more efficient with Reduced glare: as they Direct the light downward onto the roadway optimizing the amount of light that is directed into the driver’s eyes.
    Higher efficiency even at freezing temperatures: Fluorescent lights on average tend to have less inefficient light output in the winter temperatures.
Accordion Content

Input Voltage : AC 220-240V, 50/60Hz

Driver Type : Constant Current. Integral


Voltage Operating Range : 80-400 VAC

High Surge Protection: 4KV

CRI: Ra>80

LED Life : 50,000 BH

Optics : Polycarbonate diffuser

Recommended Height of the Pole: 3.5 mtr

Recommended Pipe outer Diameter: 30-35mm

 Application   – High Ways, City Roads, Village roads, College campus

  • Street Light
  • Gardens
  • Pathways
  • Residential Building
  • Compound Lighting

System Wattage(W) 70W

Lumen Output (lm) 9800

Frame              – Aluminum Die Cast, ADC 12, powder coated

Cover                – Transparent, Toughened & Safety Glass

Pipe Dia          – 2.5 Inch

Fixed weight

PCB type         Aluminum 1.5mm thickness

Type of LEDs   – 2835, 3030

No of LEDs     – 70

LEDs life         – 50000 hrs

Lumens per watt   – 140

Color                 –   6500K(CW)

Input Voltage     –  90-290V

CRI                       – 80, PF

PF                        – >0.9, IP33

Ingress Protection IP 65

Surge Protection   –  4K



Road size

Lux required

Street wattage

Pole height

Name of road




2m max

Village /walking track

30 feet



3-4 m

Village /speed20km/h





Village main road/municipal road /speed 40km/h

100 feet road


100w -150w


High ways/speed is 100km/h

Parking areas




Cámara recording

House terrace


Each floor -36 watt and if tis more height use lens

Only clamp is required


Compound wall


24w -100w

Only clamp is required

Cámara recording


Know more about products

Street lights are commonly made of corrosion resistant metal such as aluminum or a strong plastic material such as high density polyethylene to be able to endure the outdoor elements. Street lights are commonly pole-mounted, on dedicated poles or existing utility poles.

Sl No
Product NameAvailable WattageLumen per WattPipe DiaLED Type
1LED Street Light – glass model15W, 20W, 24W, 36W, 50W, 60W, 70W14025mm, 35mm, 40mm2835
2LED Street Light – Dolphin model30W, 50W13025mmcob
3LED Street Light – rocket24W, 36W20035mm5050
4LED Street Light – lens15W, 20W, 24W, 36W, 50W14025mm2835
5LED Street Light – frame15W, 20W, 24W, 36W, 50W14025mm2835
